Ventilator for livestock housing

SBF-1.2MSDF-1MSDF-1M (0.75KM)SDF-06MSDF-05MPortable StandShutterDuct fanTrans Controller

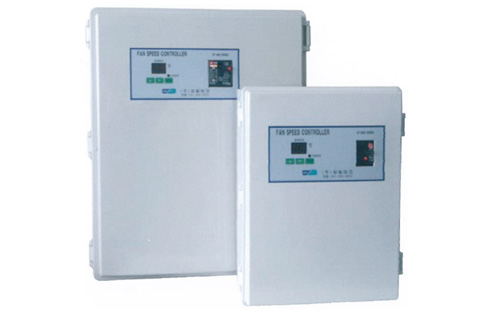

Trans Controller

  • Trans type

    This voltage type controller features minimal noise, and the cause of vibration and noise generated by the ventilation fan is fundamentally prevented. Electrical costs are reduced by the low-speed operation. The life of the motor is much longer compared to other controllers.

    Non-flammable & damp-proofing

    It has a structure that is highly resistant to moisture and fire.

Specification

Model

Capacity

Rated
voltage

Rated
current

Number of
fans available
ST-1005 2.5KVa 220V 12.5A 5
ST-1010 5.0KVa 220V 25.0A 10

The number of fans that can be installed is based on the SDF-1M single-phase model
