Ventilator for livestock housing

SBF-1.2MSDF-1MSDF-1M (0.75KM)SDF-06MSDF-05MPortable StandShutterDuct fanTrans Controller

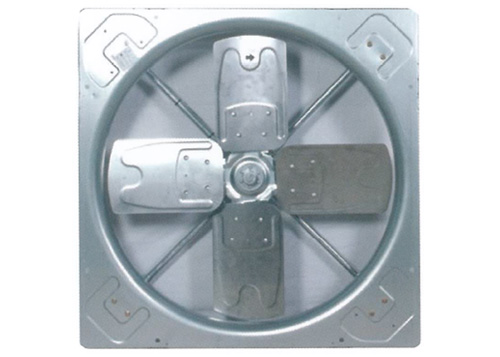

SDF-1M

  • Excellent corrosion resistance

    The blades are made of stainless steel 304 and thus highly resistant to corrosion. The frame is made of galvanized steel with no welding seams, having strong corrosion resistance.

    Bell-mouth structure

    Wind-loss is prevented and resistance minimized to achieve low noise and maximized airflow efficiency.

    Long-life motor

    The motor has an aluminum case for excellent heat dissipation. Long-life bearings ensure long-term use without a breakdown.

    Application : Livestock manure drying, relay ventilation fan & exhaust fan for livestock houses (pigsties, and henhouses), factory ventilation

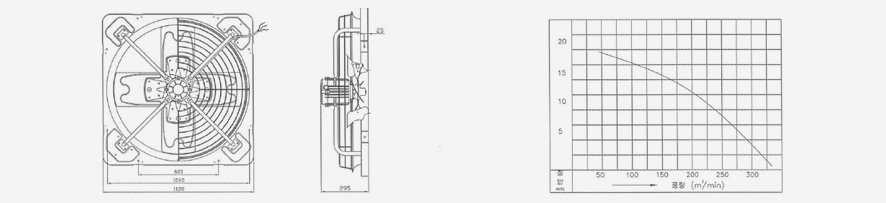

Specification

Model

Blade
diameter
(cm)

Power
(V)

Poles
(P)

Frequency
(Hz)

Current
(A)

Output
(W)

Air
volume
(㎥/m)

Rotational
speed
(RPM)
SDF-1M 100 Single
phase
220		 8 60 2.4 400 330 810
    Three
phase
380		 8 60 1.1 400 330 810
