Ventilator for livestock housing

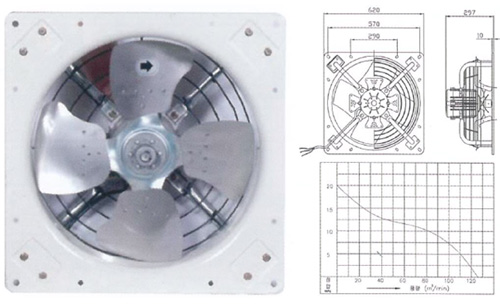

SDF-05M

  • Designed with a structure that is semi-waterproof

    You can clean the system with high-pressure water (Water pressure - 20kg/c㎡)

    Excellent corrosion resistance

    The blade is made of stainless steel sheet, the bell-mouth uses hot-dip galvanized steel sheet, and a coating of polyester powder is applied, all of which contribute to enhanced corrosion resistance.

    Light weight

    Successful reduction of the product weight

    Application : Relay ventilation fan & exhaust fan for livestock houses (pigsties, and henhouses), factory ventilation

Specification

Model

Blade
diameter
(cm)

Power
(V)

Poles
(P)

Frequency
(Hz)

Current
(A)

Output
(W)

Air
volume
(㎥/m)

Rotational
speed
(RPM)

SDF-
05M
50 Single
phase
220
6 60 2.4 150 130 1140
Three
phase
380
6 60 0.6 150 130 1140
