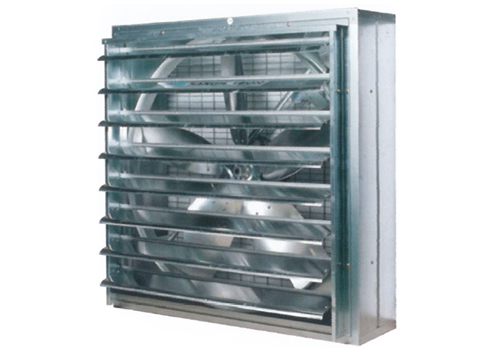

Ventilator for livestock housing

SBF-1.2M

  • Shutter-separated type, applied to ventilation of tunnel-type livestock houses

    This system has excellent corrosion resistance as it uses hot-dip galvanized pipe and steel sheet.

    The propeller is made of 1mm stainless steel sheet to minimize resistance, and the bell-mouth structure reduces noise effectively. The powerful 1.5-hp & 4-pole motor can be used for a long term, and the belt-driven operation ensures a large air volume.

    This ventilator can be used for a long time without a breakdown, protects livestock from heat, and lowers the concentration of harmful gases to create a pleasant environment for livestock.

    Application : For tunnel-type ventilation (If the shutter is not installed, it can be used as a relay ventilation fan in summer by attaching the front/rear net)

Specifications

Model

Blade
diameter
(cm)

Power
(V)

Poles
(P)

Frequency
(Hz)

Current
(A)

Output
(W)

Air
volume
(㎥/m)

Rotational
speed
(RPM)

SBF-1.2M 120 Single
phase
220
4 60 6.5 1100 660 505
    Three
phase
380
4 60 3 1100 660 505

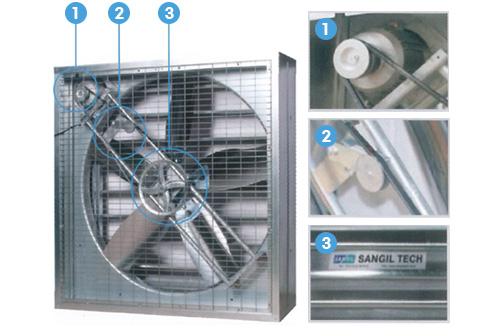

Structure

  • 1. Waterproof motor

    The motor is designed with a structure that is semi-waterproof. So it is highly resistant to snow/rain and can be cleaned with water. (Water pressure -10kg/㎡)

    2. Belt tension device

    It protects the belt from loosening, which often occur due to long-term use, so that the belt can be used for a long time without replacement.

    3. Shutter

    The shutter is designed for non-powered opening/closing with no noise.
